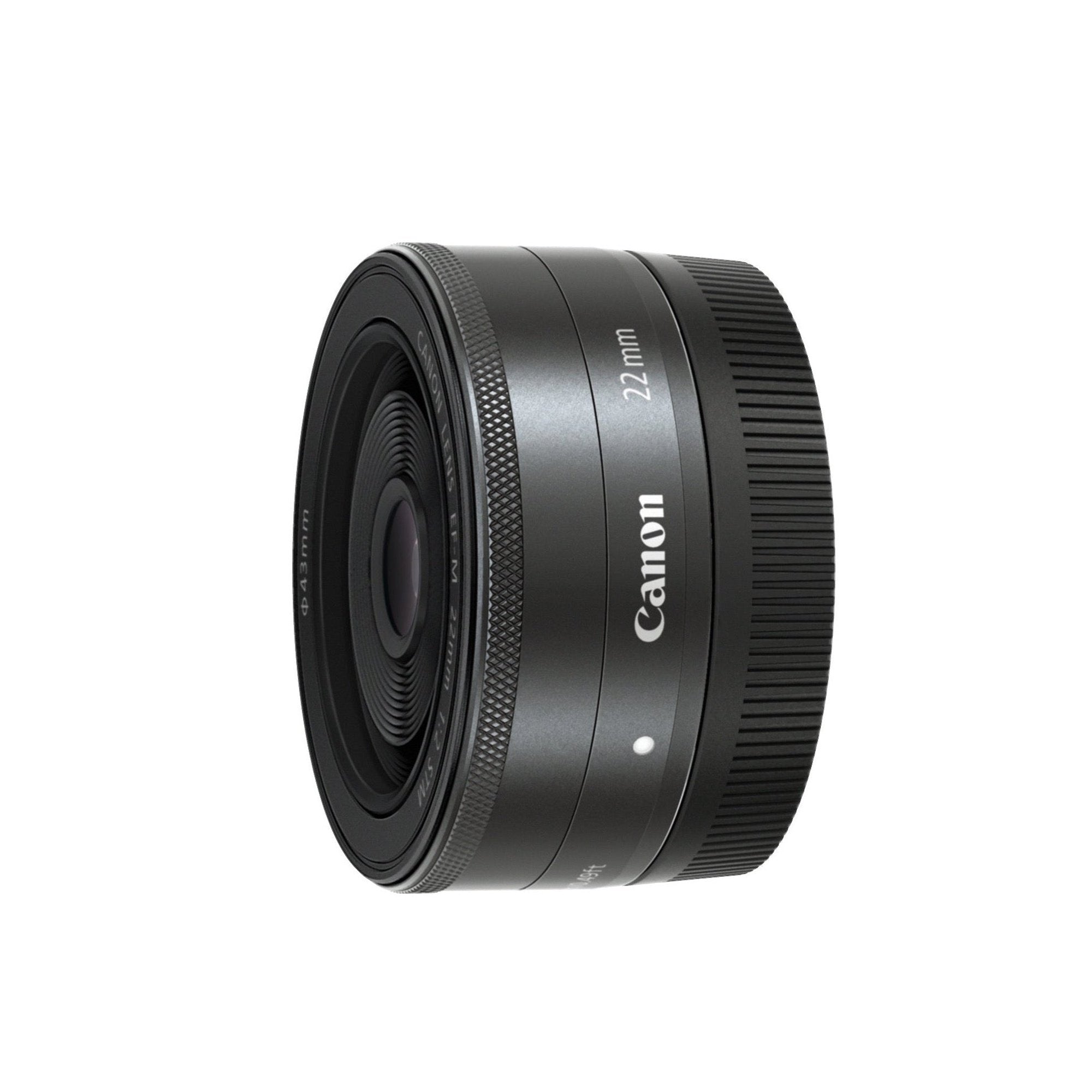

The EF-M22mm f/2.0 STM is a lightweight "pancake" lens that maintains its compactness when mounted on the EOS M; sliding effortlessly into most pockets.
The EF-M22mm f/2.0 STM is a lightweight "pancake" lens that maintains its compactness when mounted on the EOS M; sliding effortlessly into most pockets. The lens has a diameter of 60.9mm, thickness of 23.7mm and a mass of 105g. It uses the 1 GMo aspheric lens to ensure high-quality images with high levels of image resolution and contrast in the periphery when at extreme close-up. A new type of stepping motor was developed to enable quiet and smooth Movie Servo AF when used with the EOS M.
With STM motor
Filter size: 43mm
Maximum aperture: f/2.0
For use with the EOS M lineup
Angle of View (Diagonal) | 63°30’ |
Angle of View (Horizontal) | 54°30’ |
Angle of View (Vertical) | 37°50’ |
Closest Focusing Distance (m, ft) | 0.15m/0.49ft |
Construction (Groups Elements) | 6-7 |
Diameter x Length | 60.9 x 23.7mm |
Distance Scale | o |
Drive System | Stepping Motor-gear drive |
Filter Size | 43mm |
Maximum Magnification (x) | 0.21 |
Minimum Aperture | 22 |
Number of Diaphragm Blades | 7 |
Anti-dust and Moisture | Not Supported |
Weight | 105g |
Accessories (Lens Cap) | E-43 or E-43 II |
Accessories (Lens Hood) | EW-43 |
Accessories (Lens Bag) | LP811 |
