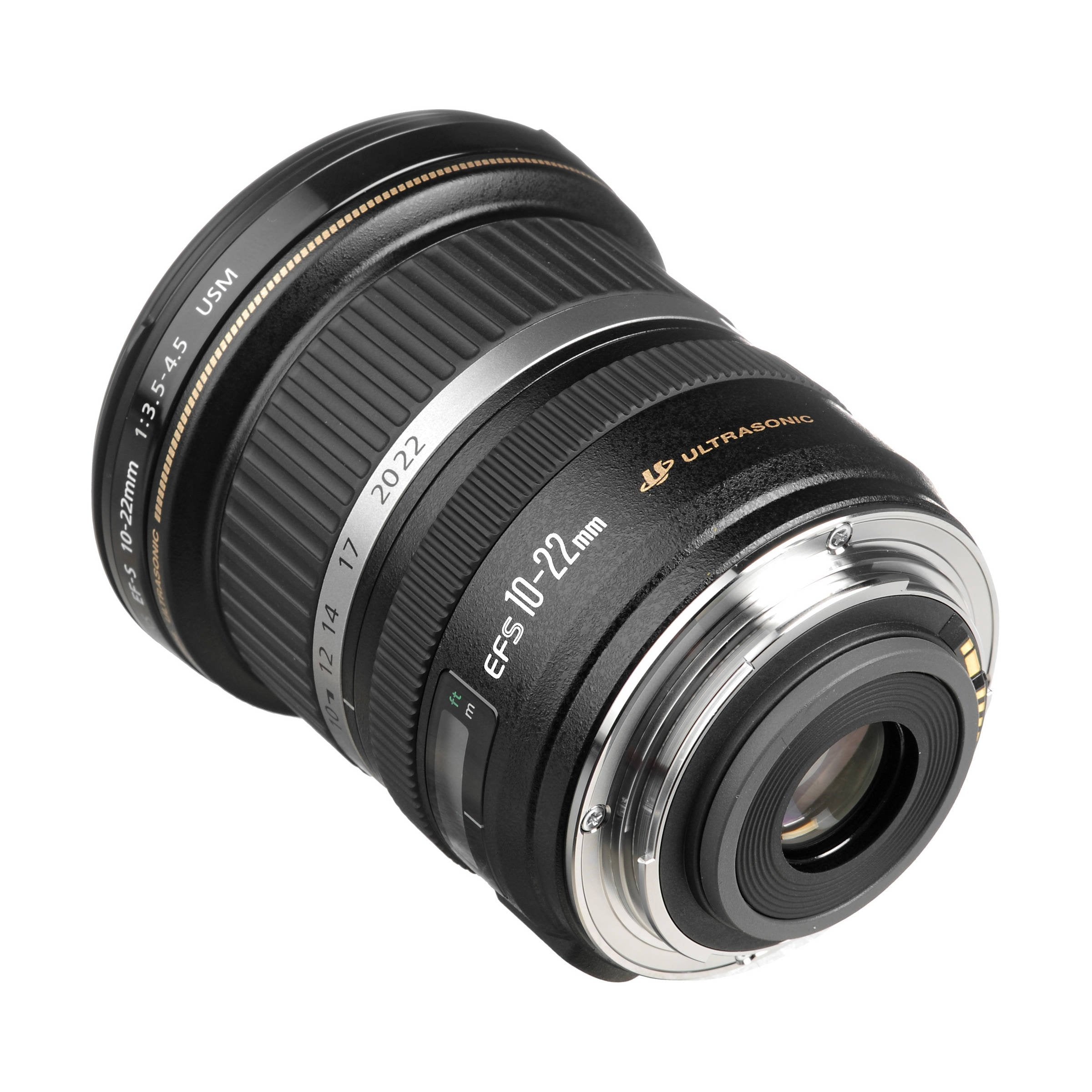

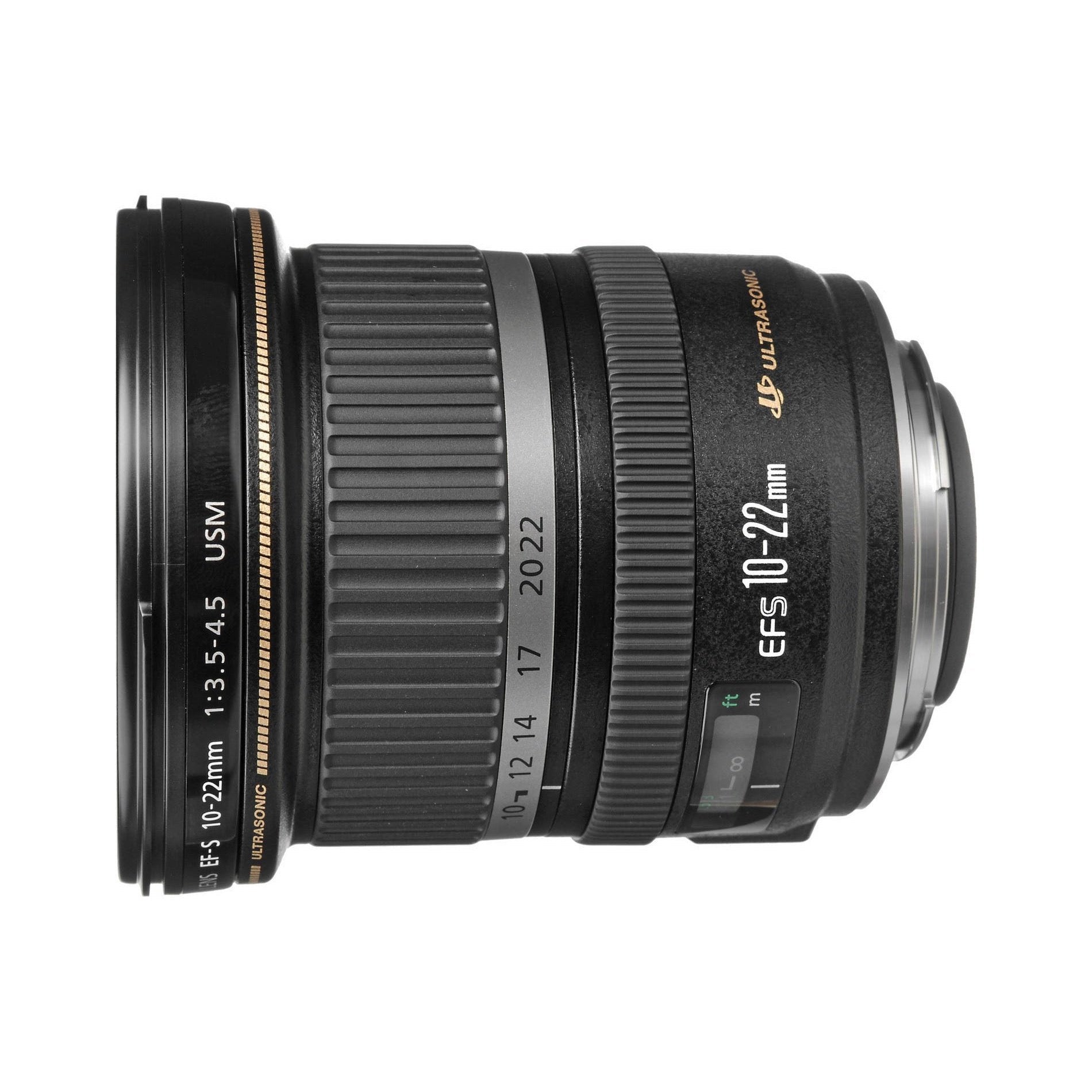

This lightweight, compact EF-S series ultra-wide-angle zoom lens is designed to take advantage of the short back focus and smaller image circle of the Advanced Photo System C size imaging element.
This lightweight, compact EF-S series ultra-wide-angle zoom lens is designed to take advantage of the short back focus and smaller image circle of the Advanced Photo System C size imaging element. It meets all the demands of both ultra-wide-angle zoom photography, and lightweight compactness. The optical system of thirteen elements in ten groups uses only environmentally friendly lead-free glass. Use of three aspherical lenses of two types(replica and molded glass), and one Super UD lens ensures outstanding picture quality over the entire zoom range, while the optical design and coatings have been optimized to reduce the flare and ghosts that are prone to occur with digital cameras, resulting in sharp images with excellent color banlance.
Minimum focus is a constant 0.24m over the zoom range, and the round diaphragm provides exquisite bokey (blur effects). The internal focusing system with its ring-type USM is quick and quiet, while the full-time manual focus enables manual focusing even in autofocus mode. The lens mechanism is designed to ensure that it fits only EOS DIGITAL SLR cameras designed to take EF-S lenses, and it is equipped with a special attachment indicator and protective rubber mount ring to prevent mistaken attempts to attach it to other EOS SLR cameras, and to prevent damage to the camera body.
NOTE: Can only be used with digital SLR cameras that support EF-S lenses.
Compatible with EOS Digital SLR cameras: EOS 50D, EOS 40D, EOS 30D, EOS 20D, EOS 20Da, EOS Kiss X2/DIGITAL REBEL XSi/450D, EOS Kiss F/DIGITAL REBEL XS/1000D, EOS Kiss Digital X/DIGITAL REBEL XTi/400D DIGITAL, EOS Kiss Digital N/DIGITAL REBEL Xt/350D DIGITAL, EOS Kiss Digital/DIGITAL REBEL/300D DIGITAL (as of August 2008)
Filter size: 77mm
Maximum aperture: f/3.5-4.5
With ring USM motor
|Focal Length||10 to 22mm (35mm Equivalent Focal Length: 16 to 35.2mm)|
|Maximum Aperture||f/3.5 to 4.5|
|Minimum Aperture||f/22 to 27|
|Lens Mount||Canon EF-S|
|Lens Format Coverage||APS-C|
|Angle of View||107° 30' to 63° 30'|
|Minimum Focus Distance||9.45" / 24 cm|
|Optical Design||13 Elements in 10 Groups|
|Diaphragm Blades||6, Rounded|
|Filter Size||77 mm (Front)|
|Dimensions (ø x L)||3.29 x 3.54" / 83.57 x 89.92 mm|
|Length at Maximum Extension||3.54" / 90 mm|
|Weight||13.58 oz / 385 g|
